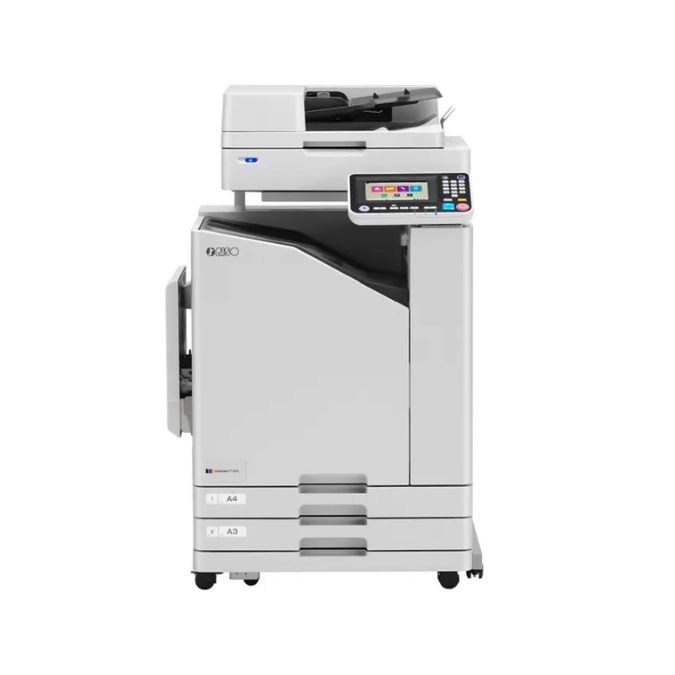

Riso ComColor FT5230

Riso

ComColour FT5230

A3 Colour Printer

120 ppm · SME Solution

Ultra Fast, Full-Color Printing
  • Print Speed: 120 ppm
  • Print Size: A3
  • Full Color CMYK
  • 3 Feed Trays
  • Low Energy Consumption
  • Environmental Certification

Specifications

  FT5430
Print Type Line-type inkjet system
Ink Type Oil-based pigment ink (Cyan, Magenta, Yellow, Black)
Print Resolution Standard: 300 dpi (main scanning direction) × 300 dpi (sub-scanning direction)
Fine: 300 dpi (main scanning direction) × 600 dpi (sub-scanning direction)
Number of Gray Levels For each CMYK color (11 gray levels)
Data Processing Resolution Standard: 300 dpi × 300 dpi
Fine: 600 dpi × 600 dpi
Line smoothing: 600 dpi × 600 dpi
Warm-up Time 2 min. 30 sec. or less (at room temperature of 23ºC (73.4ºF))
First Print Time *1 5 sec. or less (A4 Long-edge Feed)
Continuous Print Speed *2 A4 Long-edge feed Simplex: 140 ppm Duplex: 70 sheets/minute (140 ppm)
Letter Long-edge feed Simplex: 140 ppm Duplex: 70 sheets/minute (140 ppm)
A4 Simplex: 108 ppm Duplex: 54 sheets/minute (108 ppm)
Letter Simplex: 108 ppm Duplex: 54 sheets/minute (108 ppm)
B4 (JIS) Simplex: 90 ppm Duplex: 42 sheets/minute (84 ppm)
Legal Simplex: 92 ppm Duplex: 42 sheets/minute (84 ppm)
A3 Simplex: 79 ppm Duplex: 39 sheets/minute (78 ppm)
Ledger Simplex: 77 ppm Duplex: 38 sheets/minute (76 ppm)
Paper Size Standard Tray Maximum: 340 mm × 550 mm (13 3/8″ × 21 5/8″) *3
Minimum: 90 mm × 148 mm (3 9/16″ × 5 27/32″)
Feed Tray Maximum: 297 mm × 432 mm (11 11/16″ × 17″)
Minimum: 182 mm × 182 mm (7 3/16″ × 7 3/16″)
Printable Area Maximum: 310 mm × 544 mm (12 3/16″ × 21 13/32″)
Guaranteed Print Area *4 Standard: Margin width of 5 mm (7/32″)
Maximum: Margin width of 3 mm (1/8″)
Paper Weight Standard Tray Simplex:46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5
Duplex: 46 gsm to 210 gsm (12-lb bond to 56-lb bond) *5 for A4/46 gsm to 104 gsm (12-lb bond to 28-lb bond) for A3, B4 (JIS)
Feed Tray Simplex/Duplex: 52 gsm to 104 gsm (14-lb bond to 28-lb bond)
Paper Tray Capacity Standard Tray Height up to 110 mm (4 5/16″)
Feed Tray Height up to 56 mm (2 3/16″) (2 trays)
Output Tray Capacity Height up to 56 mm (2 3/16″)
Page Description Language RISORINC/C IV
Supported Protocols TCP/IP, HTTP, HTTPs (TLS), DHCP, FTP, LPR, IPP, SNMP (SNMP v1), Port 9100 (RAW port), IPv4, IPv6, IPSec (IKEv1)
Supported Operating Systems Standard Microsoft®: Windows® 8.1 (32-bit/64-bit), Windows 10 (32-bit/64-bit), Windows Server® 2012 (64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2016 (64-bit), Windows Server 2019 (64-bit)*6
Optional *7 Mac: macOS v10.12 (Sierra), v10.13 (High Sierra), v10.14 (Mojave), v10.15 (Catalina), v11 (Big Sur) *6
Linux®: Compatible with PPD only
Network Interface Ethernet 1000BASE-T/100BASE-TX/10BASE-T×2 Channel
Memory Capacity 4 GB
Hard Disk *8 Capacity 500 GB
Available Space Approx. 430 GB
Operating System Linux
Power Source AC 100 – 240 V, 10.0 – 5.0 A, 50 – 60 Hz
Power Consumption Max. 1,000 W
Ready *9: 95 W or less
Sleep *10: 2 W or less
Stand-by: 0.3 W or less
Operating Noise 65 dB (A) or less at printing
Operating Environment  Temperature: 15 ºC to 30 ºC(59ºF to 86ºF)
Humidity: 40% to 70% RH (non-condensing)
Dimensions (W × D × H) In use: 1,030 mm × 735 mm × 1,115 mm(40 19/32″ × 28 15/16″ × 43 29/32″)
With cover and tray closed: 775 mm × 710 mm × 970 mm(30 17/32″ × 27 15/16″ × 38 7/32″)
Weight  Approx. 137 kg (302 lb)
Dimensions When Operating (W × D × H) With the front cover open and the operation panel in the upright position:
1,185 mm × 1,225 mm × 1,115 mm(46 21/32″ × 47 27/32″ × 43 29/32″)
Accessories Scanner HS7000, Additional 2000 Sheet Feeder FG20, Face Down Finisher F10,
Multifunction Finisher FG20/Folder Unit FG20, Auto-Control Stacking Tray II, Wide Stacking Tray,
ComColorExpress RS1200C, PS Kit FG10, IC Card Authentication Kit II, Envelope Feed Kit, Card Feed Kit
