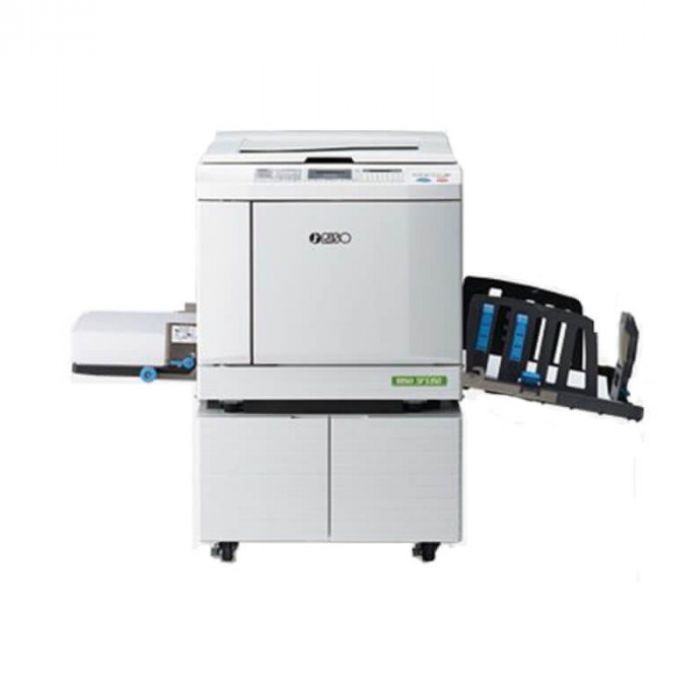

RISO SF5030EII
130
ppm
Achieving 1000 pages printed in approx. 8 minutes, this surprisingly rapid rate will efficiently support your heavy paperwork requirements.
QUICK
MASTER
MAKING
A new function, Quick Master Making mode, shortens the master-making time while still maintaining high image quality.
1000
sheets
The paper feed tray has a capacity of 1000 sheets* for both feeding and receiving, which ensures uninterrupted printing over a longer period.
*When using the following weights of paper: 64 gsm to 80 gsm.
LOW
COST
The SF EⅡ series makes prints from a master. The more pages generated from each master the lower the cost per print. This means you can benefit from highly economical large-volume printing in the long run.
PAPER
SAVING
Page layout printing combines multiple copies of the same page, or copies of multiple pages onto a single printed page to save paper. Conveniently condense bulky multiple-page documents in an easy-to-read format. These functions are available when using the printer driver.
HANDLING
CAPABILITY
The SF EⅡ series plays multiple roles, accepting a wide range of paper types such as recycled paper, coarse paper, cards and envelopes.
SF5330 EⅡ
| Master Making/Printing Methods | High-speed digital master-making/Fully automatic printing | |
|---|---|---|
| Original Type | Book or sheet | |
| Master Making Time*1 | Quick Master Making mode |
– Approx. 14 seconds (A4, long-edge feed) – Approx. 18 seconds (A4, short-edge feed) |
| Normal master making mode |
– Approx. 16 seconds (A4, long-edge feed) – Approx. 20 seconds (A4, short-edge feed) |
|
| Resolution | Scanning | 600 dpi × 600 dpi |
| Printing | 300 dpi × 600 dpi, Quick Master Making mode: 300 dpi × 400 dpi | |
| Maximum Scanning Area | 297 mm × 432 mm | |
| Print Paper Weight | 46 gsm to 157 gsm | |
| Print Paper Size | 100 mm × 148 mm to 310 mm × 432 mm | |
| Maximum Printing Area | 291 mm × 413 mm | |
| Paper Feed Tray Stacking Capacity | 1000 sheets*2, stacking height of 110 mm or lower | |
| Paper Receiving Tray Stacking Capacity | 1000 sheets*2, stacking height of 110 mm or lower | |
| Print Speed | 5 levels: 60, 80, 100, 120 and 130 ppm | |
| Print Position Adjustment | Horizontal: ±15 mm, Vertical: ±10 mm | |
| Image Processing Mode | Line, Photo, Duo, Pencil | |
| Print Reproduction Ratio | Zoom: (50% to 200%), 100% reproduction ratio, 3 levels of enlargement (141%, 122%, 116%), 4 levels of reduction (94%, 87%, 82%, 71%) | |
| User Interface | LCD panel | |
| Functions | Original Scanning mode, Scanning Level, Enlargement/Reduction, Dot Process, 2-Up, Book, Ink Saving, Quick Master Making, ADF-Semi-Auto*3, Speed, Density, Print Position, Program A/B, D-feed check, Slip sheet sorting, Job Separation*4, Idling, Confidential, Meter Display, Count Report Output, Proof, Direct Printing, USB Flash-via-Printing, Paper Memory Print, Auto Sleep Setting, Auto Power-OFF Setting, ECO Mode, RISO iQuality System | |
| PC Interface | USB2.0, Ethernet:100BASE-TX, 10BASE-T*5 | |
| Ink Supply | Full automatic (1000 ml/cartridge) | |
| Master Supply/Disposal | Full automatic (A3: approx. 220 sheets per roll)/Disposal capacity: approx. 100 sheets | |
| Power Source | AC 100-120 V 3.4 A, AC 220-240 V 1.6 A, 50-60 Hz | |
| Power Consumption | Standard | Max.: 300 W, Ready: 20 W or lower, Sleep: 5 W or lower, Power-OFF 0.3W or lower |
| Optional Accessories Connected*6 |
Max.: 315 W, Ready: 30 W or lower, Sleep: 10 W or lower, Power-OFF 0.3W or lower | |
| Dimensions (W×D×H) | In use | 1415 mm × 670 mm*7 × 1065 mm*8 |
| In storage | 780 mm × 670 mm*7 × 1065 mm*8 | |
| Required Space (W×D×H) | 1415 mm × 1240 mm × 1515 mm*8 | |
| Weight | 100 kg*9 | |
